The PH-1500 analyzer.
The pH analyzer for extremely aggressive solutions:

PH-1500 pH analyzer

The PH-1500 pH analyzer after one year of operation in the chlorine leaching process:

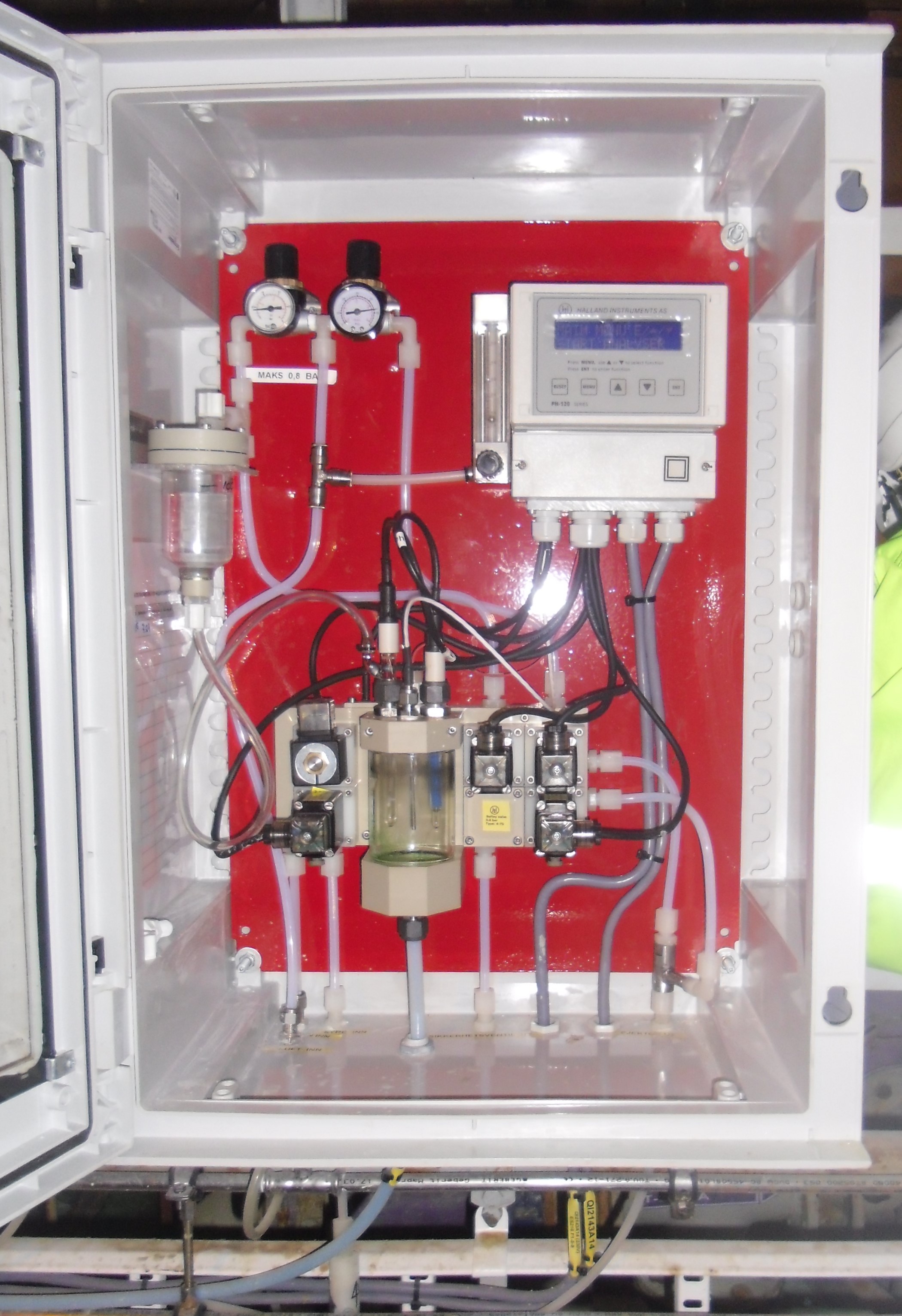

PH-1500 pH analyzer after one year of operation

The ASRM-1300 automatic sedimentaion rate measuring station:


pH and ORP analyzers for the nickel matte chlorine leaching process.

The “PH-1500” pH analyzer is used to maximize the hydrochloric acid leaching efficiency in the chlorine leaching processes and to control and optimize the cobalt purification process.
These processes are difficult or impossible to control with accuracy with conventional pH analyzers. The problem is that other pH measuring systems have low accuracy and short lifetime of the electrodes. The main causes of the problems are poisoning of the reference electrode and build-up of a layer of coating from the complex solutions on the pH electrode.
Our PH-1500 analyzer has high accuracy, very long long-term accuracy and the lifetime of the electrodes are very long, many months or even years. The reference electrode is never poisoned and the pH electrode surface is kept clean by an advanced cleaning system.
Other systems require frequent calibrations, however, this only disguise the problem, the problem of low accuracy persists. A short lifetime of the electrodes or combination electrode is a symptom of low average accuracy, making process optimization impossible.

The following properties distinguish our analyzer from other known technology:
1. Most reliable, infrequent error with the analyzer or the electrodes, very low-maintenance.
2. High short-term and long-term accuracy.
3. Very long life of the electrodes, it is not possible to get high long-term accuracy without long electrode life.
4. Other systems require frequent calibration and are still not accurate. Our analyzer gives high accuracy even with weeks’ interval between calibrations.
5. It is fast and easy to calibrate the analyzer, there is no sample head which must be dismantled for calibration.
6. It is easy to install the analyzer and normally no encroachment in the process equipment is needed.

Other features:
1. Automatic cleaning of the electrodes by spraying the electrodes from below cleans the sensor surface mechanically and cleaning with chemicals prevents build-up of coating.
2. The analyzer is designed for harsh environments  with high temperatures, acid, dust and gases. The analyzer is designed to tolerate electrical noise and fluctuations in the supply voltage.
3. Easy to operate, logical menu structure, easy-to-use two point calibration procedure with calibration plausibility check.
4. The electrode system is designed in such a way that the reference electrode never can be poisoned.
5. The analyzer is designed for measuring the pH of solutions with high solid content.
6. The electrodes are in controlled pressure conditions and are protected against mechanical strains.
7. Large two-line LCD display with LED back-light.
8. Measuring range -1 to 14 pH.
9. Modbus port for data communication, 4-20 mA output and alarm output.

ASRM-1300 and PH-1500 after one year

PH-1500, pH analyzer at the Glencore Kristiansand Nikkelverk AS

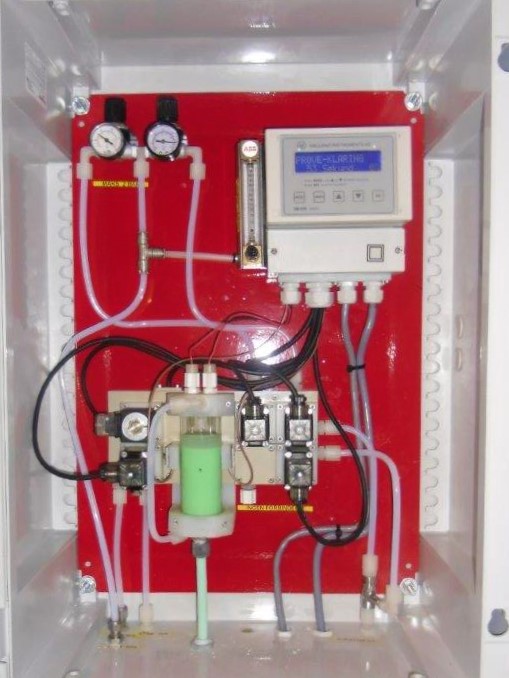

ASRM-1300 after one year of operation ASRM Measurement

ASRM-1300, automatic sedimentation rate measurement at the cobalt purification step at Glencore Kristiansand Nikkelverk AS

“ASRM-1300”, the automatic sedimentation rate measuring station for the sedimentation and precipitation processes.
The ASRM-1300 measures the time required for the sample to become clear or translucent, down to a fixed (adjustable) distance beneath the surface. The instrument sucks a sample from the process to a measuring cell (cylinder), where the required time for settling is measured. The sample is then returned to the process. Then the instrument sucks up a dose of detergent, for instance an acid, from a container and sprays the detergent into the cylinder. The cylinder is then washed with water, and the cycle is repeated. The frequency of washing with detergent is programmable. The instrument gives you a unique possibility for process optimizing, because it measures the response to changes in settling properties so rapidly and automatically. A manual sample is not the same, it is not possible to replicate an automatic measurement because the manual measurement is depending of how accurate the operator is.
This is truly an early warning system for any oncoming process difficulties. The instrument is a complete-working unit for sampling, measuring and washing of the cell. It has 4-20 mA output and Modbus RTU computer interface.
The sample is usually taken from a tank, launder or pipe, before the thickener or filtration station, but after the addition of flocculant, if used.

Proven technology
Our analyzers are the result of 40 years of experience with design, construction, servicing and sale of pH analyzers to the industry.
